Fast working nonmetal cutting laser machine double head co2 laser engraving machine lk1610 t

FOB Reference Price:Get Latest Price
$4,500.00 - $6,000.00 / Sets | 1 Set/Sets laser cutting machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood, non-metal
Laser Type:
CO2
Cutting Area:
1600*1000mm
Cutting Speed:
0-64000mm/min
Graphic Format Supported:
AI, BMP, DWG, DXF, PLT
Application:
Laser Cutting
Model Number:
LK1610t
Condition:
New
Cutting Thickness:
25mm(acrylic)
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
laser cut
Place of Origin:
Guangdong, China
Brand Name:
HANNIU LASER
Certification:
CE, FDA
Resolution:
0.025mm
Laser power:
80W/100W/120W/150W/200W
Resetting positioning accuracy:
d0.01mm
Dimension(L*W*H):
2000*1600*1000mm
Transmission:
Pully guide
Memory capacity:
1GB,more than 800 files
Gross power:
<1250W
Transmission mode:
U disk,USB cable,internet
Net weight:
460KG
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10000 Set/Sets per Year laser cutting mchine
Packaging & Delivery
Packaging Details
Each laser cutting machine will be packed in one strong wooden case.
Port
Guangzhou port
Lead Time :
Shipped in 5 days after payment

Fast working nonmetal cutting  laser machine  double head co2 laser engraving machine  lk1610 t



Main features

Features of laser cutting machine

1.International DSP operating technology without computer

2.Support U disk,USB cable,Internet, three transmission mode,1GB of memory,can store more than 800 files.

3.Precision guide rail, to ensure the enquipment running accurately.

4.Latest software compatible with AutoCAD,CoreDRAW and other kinds of graphics processing software

5.Fast continuous cutting ,strong light,speed automatic matching

6.Constant current regulator power components

7.Drawer and funnel design ,convenient reciepts

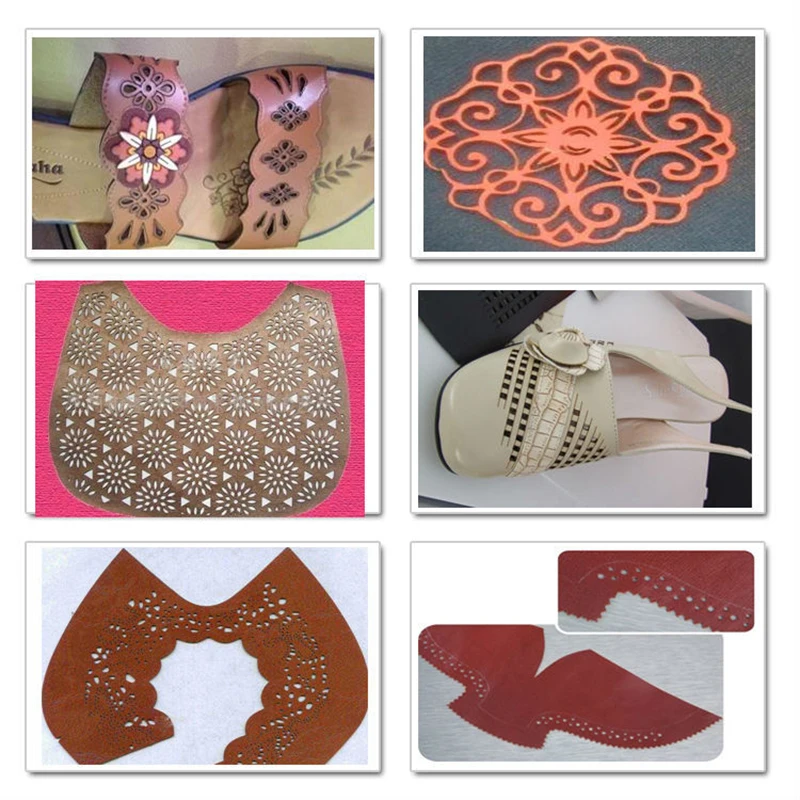

Sample Picture




Machine application



Manufacturer

 Guangzhou Hanniu Laser Machinery CO.,Ltd

Brand Hanniu Laser
Model  lK-1610t
Laser power 80W/100W/120W/150W
Laser type Sealed CO2 laser tube
Laser tube service life 10000hours(theoretical value)
Working platform Cutting blade platform
Working area 800*2*1000mm
Working speed 0-64000mm/min
Operating humidity 5%-95%(free of condensed water)
Cooling method  Water cooling
Repeating positioning accuracy  ±0.1mm
Resolution 0.025mm
Minimum shaping character English letter:1mm
Control mode  DSP
Transfer mode USB interface/U-disk/Internet
Graphic format supported BMP/GIF/DXF/DWG/PLT/TIFF/TGA/PCX/JPG
Transmission Linear guide
Gross power <1250W
Net weight 450KG
Color Black&white
Dimention 2160*1600*1100mm
Operating temperature 0-45°C
Application
Applicable industry
This machine is widely used in various industry such as clothing,luggage,computerized embroidery and clipping ,model.electronic applianceS,toys,furniture,advertisement decoration, packaging,printing, paper products,handicrafts,and other industries.
Suitable material
This machine is suitable for cutting non-metallic materials such as fabric,leather,plexiglass,acrylic ,rubber, tile, wood products, bamboo products,wool,paper materials,ceramics

Detail Parts


Detail parts:



1.Focusing lens

Assuring quality lens, Hanniu Laser adopt imported lens from Singapore.

2.Data transmission

With USB interface, supporting U disk / USB cable / internet data transmission mode .

3.Control panel

With silicone button platform and humanity design control panel, making the operation more convenient.

4.Working table

Cutting blade ,honeycomb and grid table are available

5. Chiller

Water cooling, high power / high efficiency, long serve life.

6.Lens mount

Quick heat radiation and anti-corrosion due to the Yellow Brass to reflect lens mount.

Inner quality control system:

In order to show you our best quality ,please allow me to introduce our quality control system as follows:
1.In the processing of production, our professional technical engineers inspect the processing

to ensure the quality of products

2.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3.18 months guarantee of the whole machine.
4.Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
5.Lifetime maintenance free of charge.
6.We will provide the consumable parts at an agency price when you need replacement.
7.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.



Packaging & shipping

 Packing with strong plywood suitable for tough handling and long-distant ocean voyage.







Our Services

Our Guarantee

1.Pre-Sale Service
Provide consulting service of customers, such as engineering staff,user department,
supply department and so on;technological experiments of sample;model choosing etc.
All of services above are free of charge

2.Training&Installation
Training deliver the machine to the designated place;help installation ,
testing and confirmation if need;after fulfilling the terms of the contract,
take free training to no less than 2 person.
-Laser protection knowledge
-Basic principles of laser device and structure of laser cutter
-Operating skills of controlling system
-Daily maintenance,laser adjustment and component changing

3.Equipment Testing&confirmation
After signing the contract,Hanniu laser will design and manufacture strictly based on customer‘s requirement.
Customer should test the equipment on all technological standards in hanniu laser .
After installation and testing,two parties will confirm the feasibility,stability and reliability of the equipment
according to the standards

4.After-Sale service
Hanniu laser provide one-year warranty,lifelong maintenance and technogical support as need.
During warranty period,if any problem of damage of components(Hanniu factory and force majeure expect).
HANNIU LASER will help repair and change damaged(except parts that easily wear and tear) for free .
After warranty period,customer need to pay repair fee and the basic fee of the material.



welcome to our company

Your friendly enquiry will be highly appreciated
